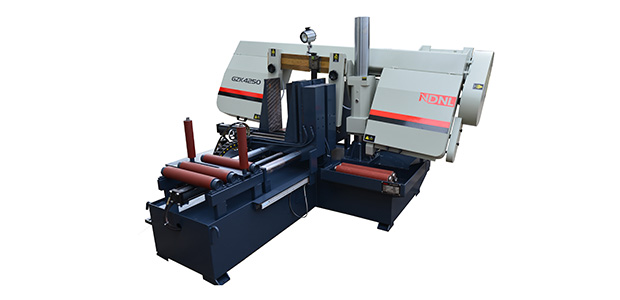

    1. Main technical parameters of sawing machine

    GZK4250Y

    Technical parameter

    Remark

    Sawing Specifications

    Φ 500mm

    □  500×500mm


    Saw blade line speed

    22/45/65


    Feed rate

    Stepless speed regulation


    Saw blade specification

    41*1.3*5900


    Main motor power

    5.5kw


    Hydraulic motor power

    1.5kw


    Feeding stroke

    500mm/次


    Second,the main features of the machine
    1. A new generation of industrial design,a new generation of CNC band sawing machines;
    2. Sawing inclined design,suitable for profile (bundle) sawing;
    3. High cutting efficiency,high-precision sawing,and high saw blade service life;
    4. Easy and fast maintenance;
1. Main technical parameters of sawing machine

GZK4250Y

Technical parameter

Remark

Sawing Specifications

Φ 500mm

□  500×500mm


Saw blade line speed

22/45/65


Feed rate

Stepless speed regulation


Saw blade specification

41*1.3*5900


Main motor power

5.5kw


Hydraulic motor power

1.5kw


Feeding stroke

500mm/次


Second,the main features of the machine
1. A new generation of industrial design,a new generation of CNC band sawing machines;
2. Sawing inclined design,suitable for profile (bundle) sawing;
3. High cutting efficiency,high-precision sawing,and high saw blade service life;
4. Easy and fast maintenance;
